Abstract

In direct-drive applications for electrical appliances, lighting, displays, and circuit drivers, challenges persist: high costs of imported driver components, unstable supply chain delivery times, parameter degradation in low-end domestic models, and insufficient reliability across wide temperature ranges. Traditional discrete drive solutions involve numerous peripheral components and lengthy development cycles, while the commutation back electromotive force in inductive loads frequently leads to device breakdown failures. The CBM2003A seven-channel N-P-N Darlington transistor array addresses these engineering pain points through targeted optimization, providing hardware engineers and product selection specialists with a domestically developed driver solution ready for direct mass production—balancing design efficiency, system reliability, and supply chain stability.

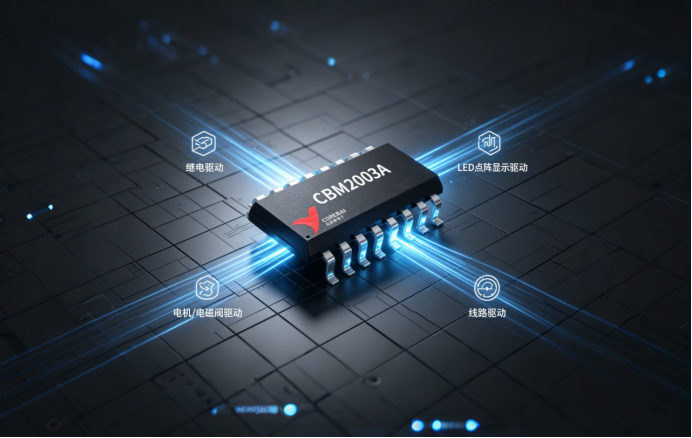

The CBM2003A is a seven-channel N-P-N Darlington transistor array designed for industrial control and general electronic drive applications. Its parameter calibration and structural design were developed to meet the core requirements of hardware engineering implementation and mass product selection. With its high compatibility, high integration, and high reliability, it provides directly producible drive solutions for typical loads such as relays, lighting, displays, and circuit drives, while balancing design efficiency, system reliability, and supply chain stability.

I. Standard Compatibility and High Integration: Simplified Design for Reduced Implementation Costs

The CBM2003A adopts the industry-standard 16-pin functional layout, with each of its 7 inputs and 7 outputs uniquely paired. The shared emitter and cathode functions are clearly defined. It is available in three mainstream packages: DIP-16, SOP-16, and TSSOP-16. The hardware design allows direct reuse of proven solutions without requiring PCB layout or firmware logic modifications, significantly reducing the time required for solution verification and mass production deployment.

The device features a built-in 2.7 kΩ base series resistor per channel, enabling direct connection to TTL and 5V CMOS logic levels without requiring input current-limiting or level-conversion circuits. It incorporates a common-anode clamping diode that provides a dedicated path for dissipating the back EMF during inductive load turn-off, eliminating the need for external freewheeling diodes. The highly integrated design reduces the number of external discrete components, lowers BOM costs and solder defect rates, and ensures consistency in mass production.

II. Quantitative Electrical Parameters: Defining Operational Boundaries to Ensure Long-Term Reliability

The CBM2003A delivers a 50V output voltage with a single-channel rated collector current of 500mA. Its channels support parallel expansion to maximize total driving capacity, enabling direct drive of 12V/24V industrial busbar system loads and compatibility with mainstream industrial power supply scenarios. The device operates within a temperature range of-40°C to 85°C, featuring quantified derating rules tailored to different packages and duty cycles: for DIP packages, the single-channel output is 370mA at 10% duty cycle and 200mA at 30% duty cycle; for SOP packages, it is 390mA at 10% duty cycle and 150mA at 30% duty cycle. These specifications provide engineers with clear current and thermal design references to prevent failure due to long-term overload operation.

The device features a conduction threshold voltage of 2.4 V, compatible with mainstream logic level outputs; a typical collector-emitter saturation voltage of 0.9 V ensures controllable conduction losses; with a typical DC current gain of 1000, it can stably drive 100 mA-level loads with microampere-level inputs, reducing the load on the main GPIO output. Both the collector cut-off current and clamping reverse current are kept below 50 μA, while the off-state leakage current is low, ensuring stable static power consumption and thermal performance that meets requirements for long-term uninterrupted operation.

III. Industrial-grade switches and anti-interference performance: Designed for complex operating conditions

The CBM2003A features typical high/low level transmission delays of 0.25 μs and a maximum delay of 1 μs, ensuring stable performance for PWM speed control, high-speed line driving, and high-frequency switching applications with negligible signal transmission latency. Its electrical overload (EOS) immunity withstands 5000 ms without damage, while the clamping diode exhibits a reverse withstand voltage of 50 V and a forward current of 400 mA. This effectively suppresses reverse voltage surges from inductive loads such as relays and solenoid valves, reducing the risks of device breakdown and system anomalies while enhancing the device's adaptability in industrial environments.

IV. Thermal Performance and Packaging Compatibility: Meeting Mass Production Assembly Requirements

The thermal performance parameters of CBM2003A align with mass-production cooling design principles, featuring linear power dissipation reduction as ambient temperature rises. At 25°C, the maximum dissipated power is 1.15 W for the DIP package and 0.95 W for the SOP package, enabling appropriate power reduction based on characteristic curves in high-temperature scenarios. Additionally, the number of conduction channels and operating duty cycle exhibit quantitative correlations with the allowable output current, providing clear references for cooling design and load distribution.

Three packaging types cater to different assembly scenarios: DIP-16 is designed for through-hole soldering and high-power applications; SOP-16 supports automated surface-mount technology (SMT) and universal motherboard use; TSSOP-16 meets the demands of high-density, compact PCB designs. The components feature standard tape-wound and tube packaging, ensuring compatibility with SMT production lines and efficient large-scale inventory management, with domestic supply chains guaranteeing reliable delivery schedules.

The Corebai CBM2003A is engineered to meet universal high-voltage, high-current drive requirements. From parameter specifications to structural design, it fully aligns with engineering implementation and mass production needs. With reliable performance, well-defined design parameters, and stable delivery capabilities, it offers a robust domestic-driven solution for industrial control, consumer electronics, smart hardware, and related fields.
