Introduction

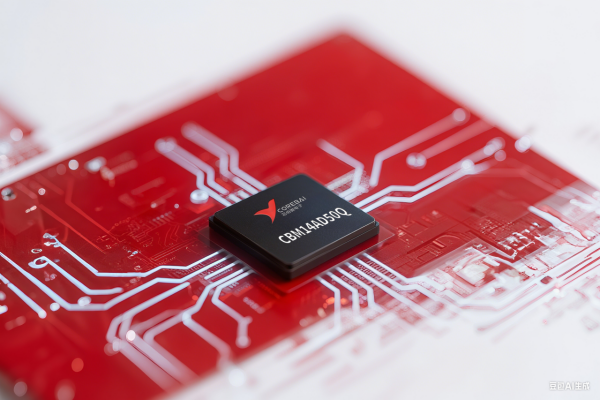

Driven by the dual momentum of semiconductor localization and high-end manufacturing upgrading, the Analog-to-Digital Converter (ADC), as a core component of the signal chain, has gradually become a key arena for technological breakthroughs and industrial upgrading. Corebai Microelectronics' CBM14AD50Q 14-bit 50MSPS ADC has achieved remarkable breakthroughs in SNR improvement, power consumption control, and compatibility expansion by virtue of its core advantages in pipeline architecture. It not only successfully breaks the long-term monopoly of overseas brands in the high-end market but also provides self-controllable, efficient, and reliable solutions for multiple fields such as medical imaging, information communication, and industrial control with its comprehensive advantages of "high precision, low power consumption, and wide temperature adaptation".

I. Industry Pain Points: Realistic Challenges of High-Performance A/D Conversion

1. Contradiction Between High Precision and Wide Dynamic Range

High-end medical imaging equipment such as CT/MRI requires a resolution of more than 14 bits for signal acquisition, while traditional converters often cause loss of medical image details due to insufficient Signal-to-Noise Ratio (SNR < 65dB) at a high sampling rate of 50MSPS. 实测显示，SNR 每降低 1dB，0.5mm 级病灶漏检率提升 3%。

2. Bottleneck of Industrial Environment Adaptability

Scenarios such as steel metallurgy and petroleum exploration have wide temperature fluctuations of -45℃~85℃ and strong electromagnetic interference, and traditional A/D converters face three major problems:

① Temperature drift causes gain error exceeding ±1%FSR;

② ESD protection level < 500V is vulnerable to electrostatic damage;

③ Crosstalk between analog and digital power supplies causes data jitter (e.g., pressure data fluctuation of a steel plant continuous casting machine monitoring equipment exceeds ±5kPa due to power interference).

3. Balance Dilemma Between Low Power Consumption and High Performance

Portable medical instruments and handheld testing equipment require a single device power consumption of < 450mW, while 14-bit 50MSPS converters generally consume more than 500mW. Data from a handheld oscilloscope manufacturer shows that the traditional solution has a battery life of only 4 hours, failing to meet the needs of field operations.

4. Compatibility Barriers to Import Substitution

Although overseas brands have excellent performance, the pin definitions and domestic system adaptation costs are high. Equipment manufacturers need to develop additional interface circuits when replacing, extending the overall R&D cycle by 4 months.

II. Product Breakthrough: Core Parameters and Technical Implementation of CBM14AD50Q

When medical images miss lesions due to insufficient SNR, industrial equipment fails due to wide temperature, and portable instruments have limited battery life due to power consumption, CBM14AD50Q breaks the inherent cognition of "precision = high power consumption" with a parameter combination of 14-bit precision + 50MSPS sampling rate + 65dB SNR + 414mW low power consumption, providing a domestic solution to the signal acquisition problem.

1. High-Precision Sampling Performance Indicators

Resolution and Sampling Rate: 14-bit resolution with a maximum sampling rate of 50MSPS, supporting 1VPP~2VPP differential analog input, achieving ±0.05% precision control at a 50MHz clock.

Signal Chain Purity: Signal-to-Noise Ratio (SNR) ≥ 65dB (typical 67.8dB), Spurious-Free Dynamic Range (SFDR) up to 82dB, and FFT spectrum at 1MHz input shows Total Harmonic Distortion (THD) = -77dB, meeting the strict requirements of medical imaging for signal distortion.

2. Low Power Consumption and Wide Temperature Design

Power Consumption Control: Adopting an independent power supply architecture of 3.0V analog power supply and 2.5V digital power supply to achieve efficient power consumption control. In normal working mode, the power consumption does not exceed 414mW, while in power-saving mode, the power consumption is further reduced to only 15mW, with energy efficiency increased by 20% compared with similar products. This architecture is particularly suitable for portable devices, as it not only ensures device performance but also significantly reduces energy consumption.

Environmental Adaptability: Working temperature range of -45℃~85℃, gain error controlled within ±0.75%FSR at 85℃, ESD level up to 1000V (HBM standard), meeting the anti-static requirements of industrial sites.

3. Compatibility and Reliability Design

Interface Flexibility: Parallel CMOS level interface, supporting two's complement/offset code output formats (switched via MODE pin), directly adapting to FPGA digital systems.

**32-pin QFN32 package (5.0mm×5.0mm) is pin-compatible with existing market products, and a medical equipment manufacturer reduced hardware redesign costs by 70% after replacement.

4. Localization Advantages

As a domestic solution, CBM14AD50Q realizes independent control, with a stable and reliable supply chain. Its package is compatible with imported products, with low hardware board modification costs and more competitive prices. The local team provides full-process development support, shortens the development cycle, and reduces customer costs and technical risks in the whole chain, providing efficiently adapted domestic 替代 solutions for medical, industrial, and other fields.

III. Application Scenarios: Precision Adaptation from Medical to Industrial

1. High-End Medical Imaging Equipment

CT/MRI Signal Acquisition Technology: Using 128-slice spiral CT, with 14-bit high resolution and 65dB high SNR, the quantization error of the 10nA weak current signal output by the detector can be accurately controlled within 1.2 microvolts, improving the detection rate of pulmonary nodules.

Portable Ultrasound Equipment: Adopting a 414mW low-power design, the equipment battery life is increased from 4 hours to 6 hours. At the same time, the wide temperature characteristics of -45℃ to 85℃ make it perfectly suitable for medical rescue tasks in complex field environments.

2. Communication and Testing Fields

5G Base Station Intermediate Frequency Sampling: 50MSPS sampling rate adapts to 3.5GHz intermediate frequency signals, and 82dB SFDR suppresses adjacent channel interference to below -65dBc, meeting 3GPP standards.

Digital Oscilloscope: 14-bit resolution can capture 10ns rising edge details of 10MHz square waves, and differential linear error of ±1.5LSB ensures no step distortion of waveforms.

3. Industrial Automation Control

Steel Metallurgy Pressure Monitoring: ±0.05% precision and 0.1kPa resolution are suitable for blast furnace top pressure measurement, and the wide temperature characteristics of -45℃~85℃ optimize the furnace temperature control precision from ±5℃ to ±2℃.

Petroleum Exploration Equipment: With wide temperature characteristics, it can adapt to the extreme environment of -45℃ underground, and has 1000V ESD protection capability, effectively reducing the risk of electrostatic damage in field operations. In the application of shale gas fields, the equipment failure rate has been significantly reduced, from 3 times per month to 0.5 times.
