Summary

In the advancement of Industry 4.0, equipment connectivity rates and data integrity have become core metrics for corporate digital transformation. However, traditional RS-485 transceivers face challenges such as high power consumption, weak anti-interference capabilities, and poor voltage adaptability, leading many enterprises to encounter "upgrade-induced connectivity failures". CBM3485 Low-Power Transceiver by Corebai Microelectronics addresses these industrial communication pain points with its core features: 300μA static current, ±15kV electrostatic protection, 10Mbps high-speed transmission, and a wide temperature range from-40℃°C to 125℃°C. This device provides stable and reliable underlying communication support for PLC systems, sensors, remote terminals, and other equipment, empowering enterprises to efficiently meet digital transformation demands.

The game between collaborative demand and communication shortcomings of industry 4.0

The essence of Industry 4.0 lies in achieving seamless collaboration among equipment, data, and personnel, all of which depend on stable and reliable communication networks. Research indicates that modern factories require "unified communication systems to support predictive maintenance, multi-control system coordination, and real-time data exchange," a demand that directly drives performance upgrades in communication components. According to the latest policy from China's Ministry of Industry and Information Technology (MIIT), the country is promoting digital transformation among 40,000 SMEs through its "Pilot Program for 100 Cities." Among the key evaluation criteria are "equipment connectivity rate" and "data integrity," which has thrust RS-485 transceivers—essential communication components at the system's foundation—into the spotlight of this transformation initiative.

However, the harsh reality is that many manufacturing enterprises are trapped in a "upgrade means chain break" dilemma. While these issues appear to be network failures on the surface, they actually expose three critical shortcomings of traditional transceivers: In scenarios with multiple concurrent devices, their excessive power consumption often leads to rapid battery depletion; When facing complex electromagnetic environments, their anti-interference capabilities prove significantly inadequate; Furthermore, their poor adaptability to wide voltage fluctuations makes stable operation difficult to ensure.

Core strength breakdown: CBM3485's five "hard indicators"

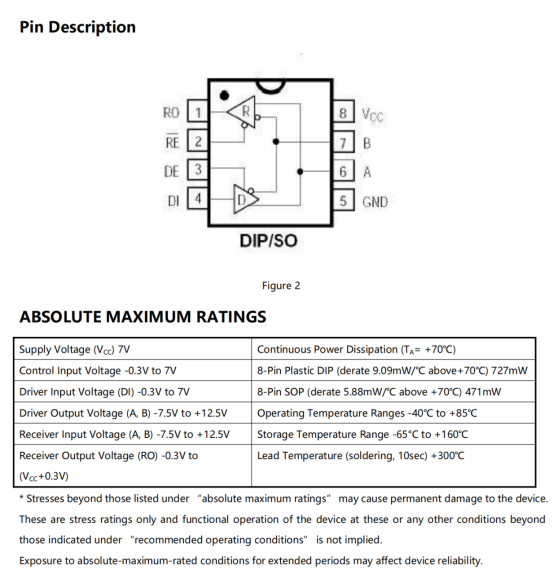

As a low-power transceiver designed for RS-485/RS-422 communication, CBM3485 integrates one driver and one receiver. In the seemingly small chip, there are five core advantages, which directly hit the pain points of industrial scenarios.

CBM3485 Typical RS-485 network structure

1. Low power consumption: the "long-lasting partner" of industrial equipment

The CBM3485 features a static current of just 300 μA and maintains a power supply range of 120 μA to 500 μA across all operating states (no driver active, no load, or full load), significantly outperforming traditional transceivers. This breakthrough design dramatically extends battery life for battery-powered devices, making it ideal for wireless sensors and remote terminals requiring long-lasting power. Additionally, the product supports 3V-3.6Vwide voltage input (−0.3V to 7V), eliminating the need for voltage conversion modules to seamlessly integrate with embedded systems and industrial controllers, thereby simplifying circuit design.

2. Wide common mode + strong protection: "communication stabilizer" in complex environment

Common industrial challenges such as voltage fluctuations, electromagnetic interference (EMI), and electrostatic discharge (ESD) significantly impact communication stability. The CBM3485 chip features a shared-mode input voltage range of-7V to +12V, enabling it to withstand extreme voltage variations while ensuring stable and distortion-free signal transmission. Its electrostatic protection meets IEC 61000-4-2 standards with air discharge resistance rated at ±15kV and contact discharge resistance at ±8kV, effectively preventing damage from human body static electricity and equipment static discharge. This makes it ideal for environments prone to high static electricity levels, including electronic assembly workshops and industrial production lines.

3. High speed transmission + multi-node compatibility: efficiency and scale are taken into account

The CBM3485 delivers a maximum data transfer rate of 10Mbps with an 80ns driver propagation delay, featuring a narrow latency difference of just 5ns between peak and minimum performance. This exceptional low-latency design meets the stringent requirements for real-time control signals and high-frequency data acquisition applications. The device supports 32 transceivers on a single bus, enabling parallel multi-device communication without requiring additional repeaters. This configuration allows efficient deployment of small-to-medium industrial communication networks while significantly reducing setup costs and cabling complexity.

4. Perfect protection mechanism to ensure reliable system operation

The CBM3485 is equipped with multiple protection mechanisms to handle sudden failures in industrial environments. The driver integrates short-circuit current limiting and thermal shutdown circuits, automatically activating protective measures when output short-circuits or excessive power dissipation occur. This triggers the driver to switch to high-impedance mode, preventing chip damage from overload. The receiver features a fault safety function that maintains an output logic high level when input signals are open-circuited, effectively avoiding system misjudgment caused by signal loss and enhancing the fault tolerance of communication links.

5. Compact package + compliant design: suitable for multi-scenario installation

The CBM3485 is packaged in an optimized SOIC-8 (SOP8) format, designed specifically for high-density PCB layouts. With an operating temperature range of-40℃ to 125℃ and a storage temperature tolerance of-65℃ to 160℃, this device can withstand extreme temperature fluctuations, making it ideal for outdoor equipment and industrial control cabinets in harsh environments.

Application scenarios: covering multi-domain industrial communication needs

Industrial control field: suitable for signal transmission between PLC, sensors, frequency converters and other equipment to build a stable industrial control LAN;

Telecommunication equipment field: communication link can be used for remote monitoring module of base station and data transmission terminal to reduce equipment power consumption;

Data communication field: adapt to packet switching system, integrated service digital network and other data transmission scenarios to ensure the stable interaction of high-frequency data;

EMI sensitive applications: With strong anti-interference capability, it can be used in medical equipment, precision instruments and other scenarios with high requirements for electromagnetic compatibility.
