In industrial control and remote monitoring applications, RS-485 bus long-distance transmission faces three major challenges: EMI interference, electrostatic shock, and power consumption redundancy. The CBM3085 from Corebai Microelectronics features a dual-core design combining 'low power consumption + high protection,' offering an optimized solution for industrial communication. Its packaging, power supply, and core performance are highly compatible with ADI's MAX3085, enabling direct replacement in mainstream scenarios.

1、Addressing the core challenge: the essential need for noise immunity in industrial environments

Static electricity protection: The RS-485 bus operates in complex environments where differential signal pins (A/B) must withstand frequent electrostatic shocks. The CBM3085 provides 15,000V ESD protection for transmitter outputs and receiver inputs, while TTL/CMOS pins (DI/RO) offer 2,000V ESD protection, meeting IEC61000-4-2 standards (±15kV air discharge, ±8V contact discharge).

Power consumption redundancy: Traditional transceivers have high standby power consumption, requiring frequent maintenance for battery-powered devices. The CBM3085 features an integrated automatic shutdown function, with idle mode current as low as 900μA (-40~125℃) and deep shutdown at only 10μA, extending device battery life.

Temperature Challenge: The wide temperature design of-40~+125℃ covers the extreme high and low temperature environment in the industrial field, ensuring the long-term stable operation of oil fields, power and other scenarios.

2、Minimalist design: 8 pins for reliable communication

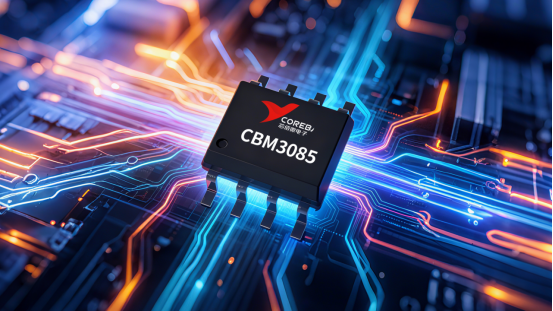

The CBM3085 features an SOIC-8 package with dual enable pins (RE/DE) for independent control of transmit/receive states.

When the transmission mode is DE=H, the DI input (TTL level) is converted into a differential signal (A/B), supporting a 500kbps rate (-40~125℃).

When the reception mode is RE=L, the A/B differential voltage outputs a high level when ≥-0.05V and a low level when ≤-0.2V. The built-in 50mV hysteresis provides anti-interference protection.

The fully integrated design eliminates peripheral compensation components, with a 300mA lockout current to prevent bus short circuits. The 3.8mm×5mm package reduces PCB space by over 50%.

3、Scenario adaptation: the "stable bridge" of industrial interconnection

Pressure transmitter: Wide temperature range + high ESD protection, ensuring real-time transmission of outdoor pipeline pressure data;

Electric vehicle alarm: low power consumption + 500kbps rate, supports rapid alarm information interaction among multiple nodes;

Industrial control cabinet: Low-temperature startup at-40℃ ensures uninterrupted communication on production lines in northern winters.

From-40℃ permafrost to +125℃ furnace environments, the CBM3085 features 15,000V ESD protection to withstand environmental interference, ensuring stable industrial communication. Its μA-class low-power design significantly extends battery-powered devices (e.g., outdoor sensors, portable monitors) 's operational lifespan, reducing engineers' maintenance workload.

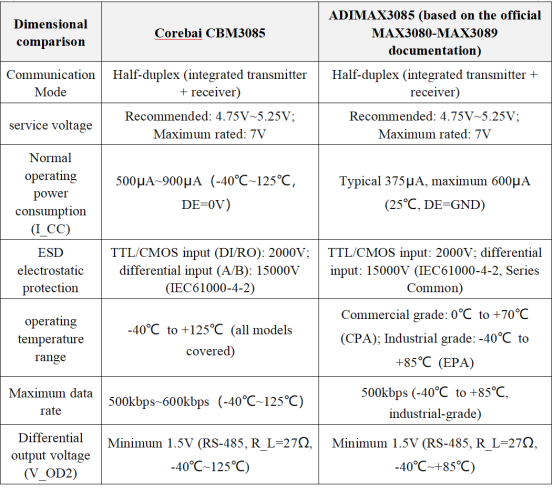

Core Parameter Comparison Between Corebai CBM3085 and ADI MAX3085
