Introduction: When "high-current drive" meets "low power consumption and compact size"

When selecting a general-purpose operational amplifier, hardware engineers often face a dilemma:

· To drive LCD panels, headphones, or capacitive loads, the standard output current of a conventional operational amplifier (OA)—just tens of mA—is simply insufficient; therefore, an additional buffer stage is often required.

· With the addition of a buffer layer, the BOM length increases, the board area expands, and static power consumption rises accordingly.

· At the same time, you require it to be a single-power-supply device with low power consumption and rail-to-rail conversion capability, enabling direct integration with MCUs, CMOS DACs, or ASICs.

These requirements are usually difficult to consolidate into a single solution.

Corebai has launched the CBM8532 dual-channel operational amplifier, which serves as a Pin-to-Pin replacement for the imported AD8532 and resolves the aforementioned specification dilemma: within an 8-pin package, it integrates ±250 mA output current, 750 µA low power consumption, rail-to-rail input/output, and 3 MHz bandwidth—all in a dual-channel configuration.

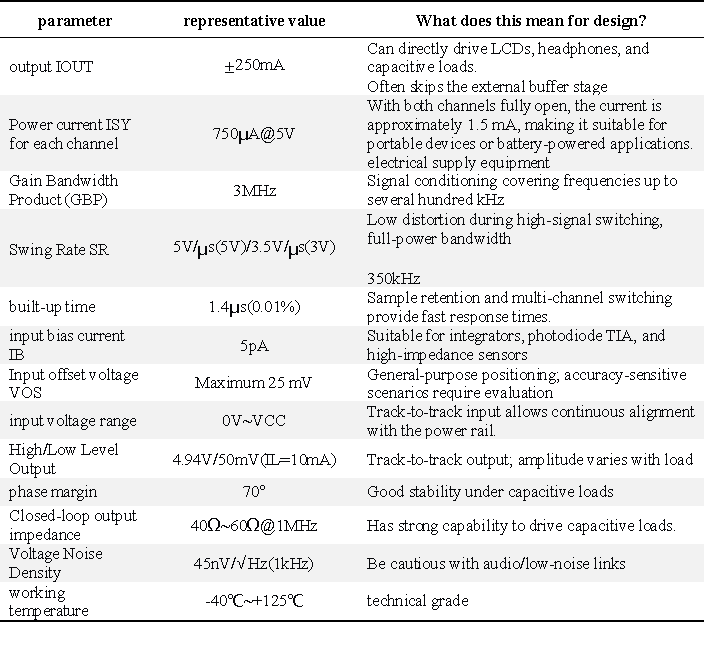

What does this mean?

1. ±250 mA output current – the most direct selling point

Most general-purpose operational amplifiers have output currents in the tens of mA range, making them unable to handle applications involving LCD panels, headphones, or high-capacitance loads without external assistance. The CBM8532's ±250 mA driving capability enables it to independently drive buffer-stage circuits and directly supply resistive or capacitive loads, thereby eliminating an additional circuit stage, saving board space, and reducing power consumption requirements.

2. Power consumption: 750 µA – High current does not equate to high power consumption

High-drive performance is often assumed to be "power-intensive," but the CBM8532 is an exception. Its typical power current per channel is merely 750 µA (at 5 V), and when operating in dual-channel mode, it consumes only about 1.5 mA. This enables the device to deliver high output currents while remaining suitable for battery-powered or low-power applications.

3. 3 MHz GBP + 5 V/µs SR – fast enough and clean enough

The 3 MHz gain-bandwidth product covers a wide range of signal conditioning requirements, from audio frequencies (20 Hz to 20 kHz) up to several hundred kHz. With a voltage swing rate of 5 V/µs, the circuit resists signal distortion during large transitions and exhibits minimal distortion. Its full-power bandwidth reaches 350 kHz, with a setup time of just 1.4 µs (0.01%), making it highly suitable for multi-channel switching and sample-and-hold applications.

4–5 pA input bias current – providing a backup path for high-impedance links

The CBM8532 features a typical input bias current of just 5 pA (up to 50 pA at maximum and up to 60 pA across the entire temperature range), combined with a typical input offset current of 1 pA, making it ideal for integrators, photodiode transimpedance amplifiers, and other applications requiring low input bias currents—where even a slight increase in bias current can significantly reduce the output signal from weak front-end currents.

5. Track-to-track integration + no phase inversion + stable unit gain – compatible with single-power-system configurations

The input range spans from 0 to V(sub)CC (/sub), with a rail-to-rail output (high level: 4.94 V; low level: 50 mV; I(sub)L (/sub) = 10 mA), enabling direct integration with wide-swing devices such as CMOS DACs and ASICs in single-power systems. The absence of inversion characteristics prevents output flipping during input overload, while stable unit gain addresses stability concerns in closed-loop configurations.

6. Selection and Delivery

It offers mainstream packaging options including SOP-8, MSOP-8, and TSSOP-8, covering the industrial-grade temperature range (-40°C to +125°C) to meet stringent environmental requirements and facilitate rapid integration into various system designs.

Common Application Solutions

1. High-power reference voltage current-sharing buffer circuit

As a buffer stage for high-precision reference voltage sources, it delivers low impedance with a maximum current amplification output of 100 mA and an equivalent output impedance <0.01 Ω. When the load current undergoes a step change of 100 mA, the transient fluctuation peak is only 20 mV and rapidly stabilizes within 10 μs, making it suitable for reference signal amplification outputs in precision measurement instruments and industrial control boards.

2. Single-power stereo headphones/Audio driver

A 5V single-power supply dual-channel stereo solution that directly drives standard headphones with resistance ranging from 32Ω to 600Ω; features a series-connected 16Ω current-limiting protection resistor, achieving THD+N <0.3% at 4Vp-p output level without requiring additional downstream buffer chips, thereby simplifying the BOM for players, portable displays, and TV audio systems.

3. Long-distance transmission of high-impedance sensor signal conditioning

Utilizing an ultra-low input bias current of 5 pA, it is compatible with high-impedance sensors such as photodiodes and piezoelectric sensors for transimpedance amplification; with a strong output of ±250 mA, it enables long-distance cable transmission while minimizing signal attenuation and external noise interference, thereby enhancing the long-term reliability of industrial sensing systems.
